The Strength Within


PONY WALLPARTIAL WALL FRAMING CONNECTION TO FLOOR


 “The Pony Wall members (Lite and Heavy) are intended to support out-of-plane loading of cantilevered partial wall systems that are unsupported at the top track. Out-of-plane loads are transferred to the floor system through the stud member and onto the welded base plate”

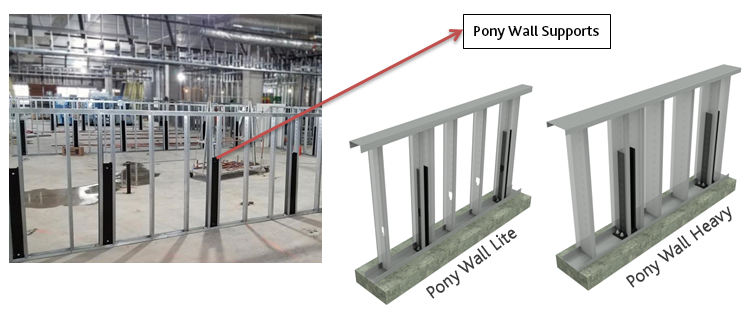

ponywall supports

PONY WALL Lite

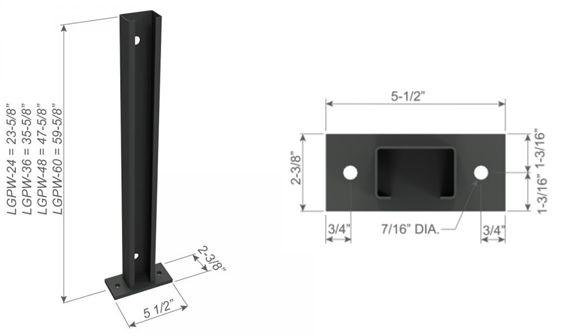

ponywall lite combined

PONY WALL Lite – Selection chart

Product codes   Dimensions
LGPW24 23-5/8" tall with 2-3/8” wide x 5-1/2” long plate
LGPW36  35-5/8" tall with 2-3/8” wide x 5-1/2” long plate
LGPW48 47-5/8" tall with 2-3/8” wide x 5-1/2” long plate
LGPW60 59-5/8" tall with 2-3/8” wide x 5-1/2” long plate


Material Specifications

Plate Material:  ASTM A36 3/8" thick hot rolled steel
Stud Material:  Structural Grade 50 Type H (ST50H), 50ksi (340 MPa)
16ga (54mil), 0.0566" Design thickness, 0.0538" Min. thickness
Packaging: Individually


PONY WALL Heavy

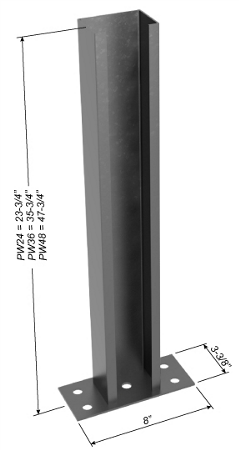

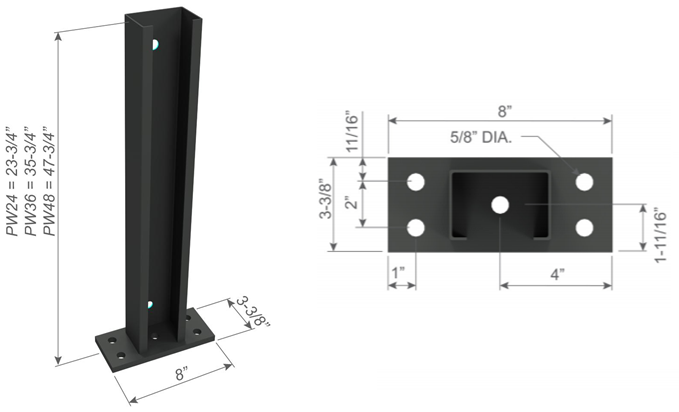

ponywall heavy combined

Pony Wall Heavy – Selection chart

Product Codes
Dimensions
 PW24  23-3/4" tall with 3-3/8" wide x 8" long plate
 PW36  35-3/4" tall with 3-3/8" wide x 8" long plate
 PW48  47-3/4" tall with 3-3/8" wide x 8" long plate


Material Specifications

Plate Material:  ASTM A36 1/2" thick hot rolled steel
Stud Material:  Structural Grade 50 Type H (ST50H), 50ksi (340 MPa)
12ga (97mil), 0.1017" Design thickness, 0.0966" Min. thickness
Packaging:  Individually

INSTALLATION PONY WALL LITE AND HEAVY

Install the Pony Wall (lite and heavy) inside the track or directly to the floor structure. Anchor to the floor as designed by EOR.  Attach the studs to both flanges of the Pony Wall. A minimum of 2-1/2" stud member can be used with the Pony Wall Lite and a minimum of 3-1/2" stud member can be used with the Pony Wall Heavy.
