The Strength Within


EASYCLIP™ S-SERIES™ AND E-SERIES™ SUPPORT CLIPSTHE STRENGTH WITHIN


EASYCLIP™ S-SERIES™

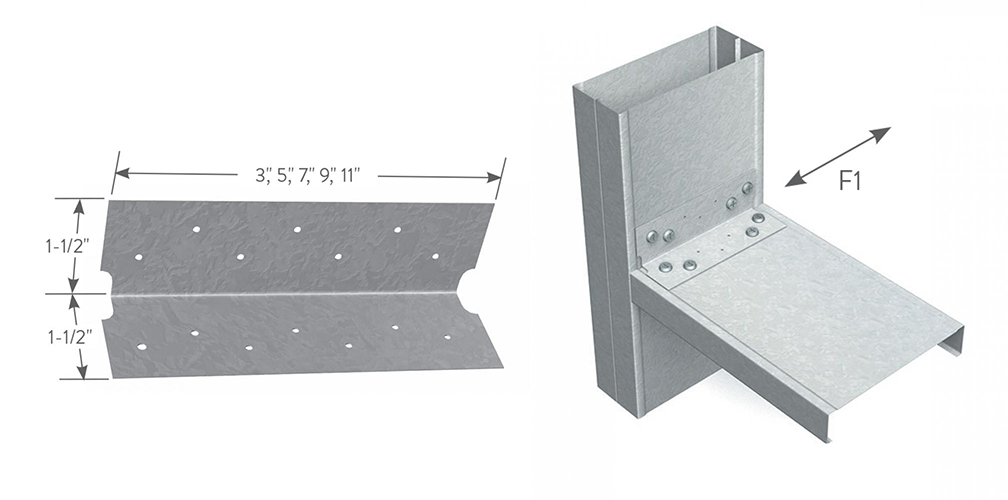

easy clip s combined

ARE COMMONLY USED TO SECURE U-CHANNEL TO FRAMING MEMBERS FOR LATERAL BRIDGING AND FOR MISCELLANEOUS RIGID CONNECTIONS.

This high-performance, multi-use utility clip is ideal for corner reinforcements, stair openings, and numerous support applications.

EasyClip™ S-Series™ support clips are commonly used for rigid connections in window and door framing, joist, bypass or other miscellaneous connections to secure one framing member to another, or to secure framing members to the structural frame.

Available in a variety of lengths and gauges, EasyClip S-Series clips are prepunched for faster and more accurate fastener placement.

  • 1-1/2" x 1-1/2" legs.
  • Lengths available in 3", 5", 7", 9" and 11".
  • Available in 16, 14, and 12 gauge.

PRODUCT DATA & ORDERING INFORMATION

Product code   Gauge
 Mils Design Thickness (in)
Size (in)
Packaging pcs./Ctn
 CLIP-S543 16
 54 0.0566
1-1/2 x 1-1/2 x 3 400
 CLIP-S545  16  54 0.0566
1-1/2 x 1-1/2 x 5 200
 CLIP-S547  16  54 0.0566 1-1/2 x 1-1/2 x 7  100
 CLIP-S549  16  54 0.0566 1-1/2 x 1-1/2 x 9 100
 CLIP-S685  14  68 0.0713 1-1/2 x 1-1/2 x 5  200
 CLIP-S687  14  68 0.0713 1-1/2 x 1-1/2 x 7  100
 CLIP-S689  14  68 0.0713 1-1/2 x 1-1/2 x 9  100
 CLIP-S681 14
 68 0.0713 1-1/2 x 1-1/2 x 11   100
 CLIP-S973  12  97 0.1017 1-1/2 x 1-1/2 x 3 200

Material Structural Grade 50 Type H (ST50H), 50ksi
Coating G90 (Z275) hot-dipped galvanized coating

Alternative Products
Universal Bridging Clip (UBC 365, UBC 600, UBC800)
Fastbridge™

INSTALLATION

EasyClip S-Series support clips are attached to the cold-formed steel (CFS) framing members using #10 minimum self-drilling screws driven through the clip holes into the steel framing. When not filling all holes, install fasteners symmetrically starting at the top and bottom edges and move toward the center of the clip. Clips can also be welded to the CFS framing. Connections to the building frame can be made with powder-actuated fasteners, drill-in concrete anchors or welding. When using the tabular values for a welded clip, provide a full weld to the structure, top to bottom, along the outside of the clip. A 3/4" minimum weld on the outside edge of the 1-1/2" leg is also required to control warping or to hold the clip in place before final welding.


*EasyClip™ S-Series™ support clips are distributed by Bailey Metal Products in Canada under permission granted by ClarkDietrich Building Systems. ClarkDietrich EasyClip™ S-Series™ support clips is a trademark of ClarkDietrich.




EASYCLIP™ E-SERIES™

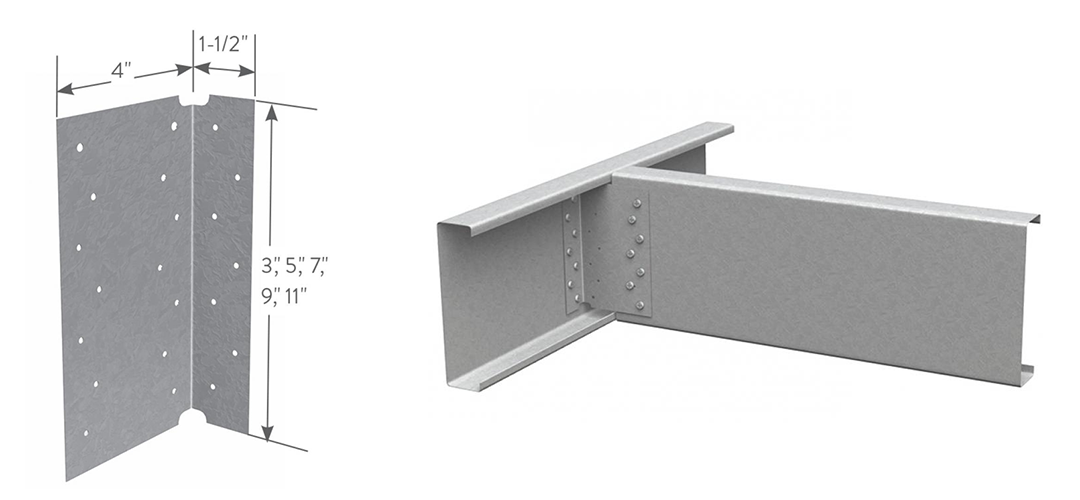

easy clip e combined

FEATURE A LONG LEG TO ACCOMMODATE GREATER STANDOFF FOR RIGID CONNECTIONS.

EasyClip™ E-Series™ Support Clips are used for rigid stand-off connections.

The 4" wide leg provides extra length to achieve stand-off connections up to 3". They are commonly used in by-pass wall conditions, solid blocking attachments in joist framing and to secure rafter framing to the primary structure. These clips are pre-punched for faster and more accurate fastener placement.

  • 4" leg accommodates large standoff.
  • Lengths available in 3", 5", 7", 9" and 11".
  • Available in 16, 14 and 12 gauge.

PRODUCT DATA & ORDERING INFORMATION

Product code Gauge
Mils Design Thickness (in)
Size (in)
Packaging pcs./Ctn
CLIP-E543 16
54
0.0566
4 x 1-1/2 x 3  100
CLIP-E545  16  54 0.0566  4 x 1-1/2 x 5  100
CLIP-E547   16  54 0.0566  4 x 1-1/2 x 7  100
CLIP-E549  16  54 0.0566   4 x 1-1/2 x 9 50
CLIP-E683  14  68  0.0713  4 x 1-1/2 x 3 100
CLIP-E685   14  68  0.0713 4 x 1-1/2 x 5  100
CLIP-E687   14  68 0.0713   4 x 1-1/2 x 7 80
CLIP-E689  14  68 0.0713   4 x 1-1/2 x 9 50
CLIP-E681  14  68 0.0713   4 x 1-1/2 x 11  50
CLIP-E975   12  97 0.1017  4 x 1-1/2 x 5  50

Material Structural Grade 50 Type H (ST50H), 50ksi
Coating G90 (Z275) hot-dipped galvanized coating

Alternative Products
Joist End- Angle Clip

INSTALLATION

Support clips are attached to the cold-formed steel (CFS) framing members using #10 minimum self-drilling screws driven through the clip holes into the steel framing. When not filling all holes, install fasteners symmetrically starting at the top and bottom edges and move toward the center of the clip. Clip can also be welded to the CFS framing. Connections to the building frame can be made with powder-actuated fasteners, drill-in concrete anchors or welding. When using the tabular values for a welded clip, provide a full weld to the structure, top to bottom, along the outside of the clip. A 3/4" minimum weld on the outside edge of the 1-1/2" leg is also required to control warping or to hold the clip in place before final welding.


*EasyClip™ E-Series™ Support Clips are distributed by Bailey Metal Products in Canada under permission granted by ClarkDietrich Building Systems. ClarkDietrich EasyClip™E-Series™ support clips is a trademark of ClarkDietrich
