EASYCLIP™ D & T-SERIES™ ANCHOR CLIPSTHE STRENGTH WITHIN


EASYCLIP™ D & T-SERIES™ ANCHOR CLIPS

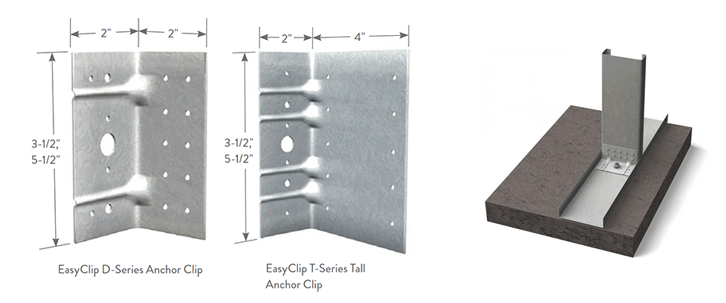

easy clip d and t combined

PROVIDE COST EFFECTIVE TIE-DOWN SOLUTIONS FOR KNEE WALLS, SHEAR WALLS AND TRUSS CONNECTIONS

The EasyClip™ D-Series™ & T-Series™ Anchor Clips are high-performance, cost effective solutions for knee wall-to-foundation connections, light duty shear wall-to-foundation connections and truss to wall connections.

These multi-application clips feature reinforced stiffening ribs that provide superior design values for maximum performance. The EasyClip™ D-Series™ & T-Series™ Anchor Clips are designed to resist horizontal, torsional, and vertical (uplift) loads. These clips are prepunched with a series of attachment holes (including heavy-duty anchor and screw holes) for efficient and accurate fastener placement.

  • Resist uplift, horizontal and rotational loads.
  • Stiffening ribs for superior design values.
  • Pre-punched holes for fast attachment.
  • Multipurpose applications.

PRODUCT DATA & ORDERING INFORMATION

Product code   Gauge
 Mils Design Thickness (in)
Size (in)
Packaging pcs./Ctn
CLIP-D683
14
68
0.0713
2 x 2 x 3-1/2
40
CLIP-T683  14  68 0.0713 2 x 4 x 3-1/2  40
CLIP-D685   14  68 0.0713 2 x 2 x 5-1/2  40
CLIP-T685  14  68 0.0713 2 x 4 x 5-1/2  40
CLIP-D973  12  97 0.1017 2 x 2 x 3-1/2  40
CLIP-T973  12  97 0.1017 2 x 4 x 3-1/2  40
CLIP-D975  12  97 0.1017 2 x 2 x 5-1/2  40
CLIP-T975  12
 97 0.1017 2 x 4 x 5-1/2  40

Material Structural Grade 50 Type H (ST50H), 50ksi
Coating G90 (Z275) hot-dipped galvanized coating

Alternative Products
Pony Wall
Moment Clip

INSTALLATION
Install EasyClip™ D-Series™ or T-Series™ Anchor Clips by attaching the screw hole only leg to the web of the stud, joist, rafter or track with the applicable # of fasteners (screws or welds). Secure bottom leg (anchor bolt hole) to structure using pre-punched holes provided with appropriate fastener type and number of fasteners according to design based on load requirements.

*EasyClip™ D-Series™ or T-Series™ Anchor Clips are distributed by Bailey Metal Products in Canada under permission granted by ClarkDietrich Building Systems. ClarkDietrich EasyClip™ D-Series™ or T-Series™ Anchor Clips is a trademark of ClarkDietrich.
