Fastbridge

The Strength Within


FASTBRIDGE™THE STRENGTH WITHIN


FASTBRIDGE™

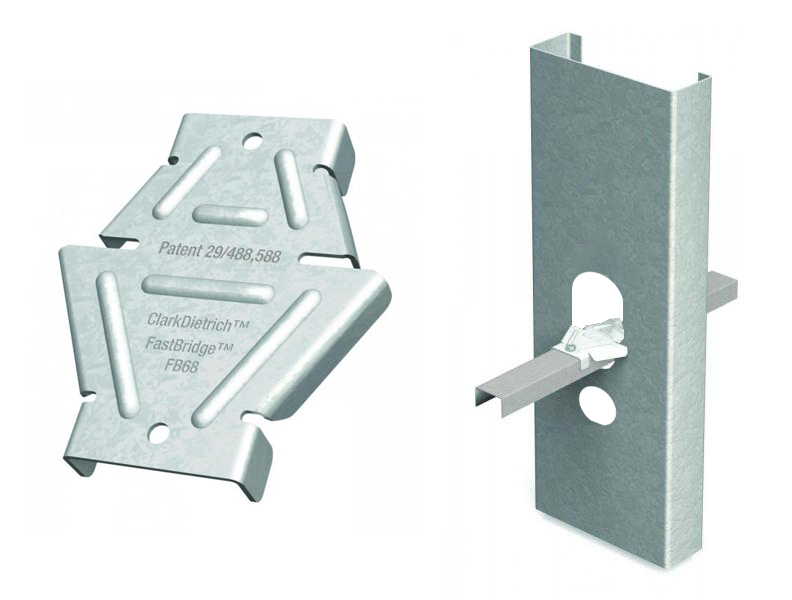

fastbridge combined

USED TO SECURE U-CHANNEL TO WALL STUDS FOR LATERAL BRACING


The FastBridge clip is used to secure u-channel to structural or non-structural wall studs when used in load-bearing, curtain wall or drywall framing applications.

The wall stud friction fit design allows for as little as one screw for the connection to the U-Channel.

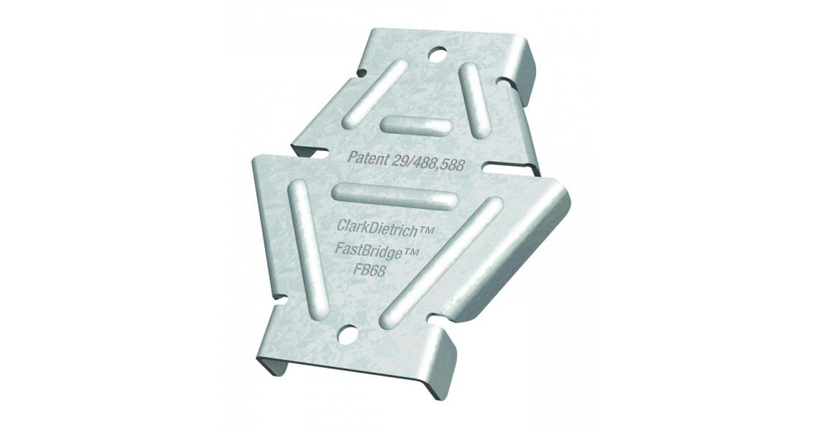

The FastBridge clip is a stiffened, G90 galvanized steel clip that’s tested and designed to facilitate the rapid, efficient installation of 1-1/2” U-Channel lateral bracing for exterior curtain wall framing, loadbearing walls or interior partitions constructed of structural or non-structural studs.

U.S. Patent No. D692,746 - Canadian Patent No. 152,547
The FastBridge clip is available in three versions:

  • (FB33) 20-gauge light-duty clip
    For use with 20-16 gauge structural studs
  • (FB43) 18-gauge light-duty clip
    For use with 20-16 gauge structural studs
  • (FB68) 14-gauge heavy-duty clip
    For use with 16-12 gauge structural studs
Alternative Products
Universal Bridging Clip (UBC 365, UBC 600, UBC800)
EASYCLIP™ S-SERIES™

PRODUCT DATA & ORDERING INFORMATION

Product code   Mils
 Gauge  Yield Strength
Design Thickness (in)
 Min. Thickness (in(
Knockout Size
Packaging pcs./bucket
CLIP-FB33  33 20 STR
33ksi
 0.0346 0.0329 1-1/2"  200
CLIP-FB43 43  18 33ksi 0.0451 0.0428 1-1/2"  200
CLIP-FB68
 68 14 50ksi 0.0713 0.0677 1-1/2"  200

Coating: G90

*Fastbridge™ (FB33, FB43 & FB68) are distributed by Bailey Metal Products in Canada under permission granted by ClarkDietrich Building Systems. ClarkDietrich FastBridge™ is a trademark of ClarkDietrich.
