FAST STRUT™THE STRENGTH WITHIN


FAST STRUT™

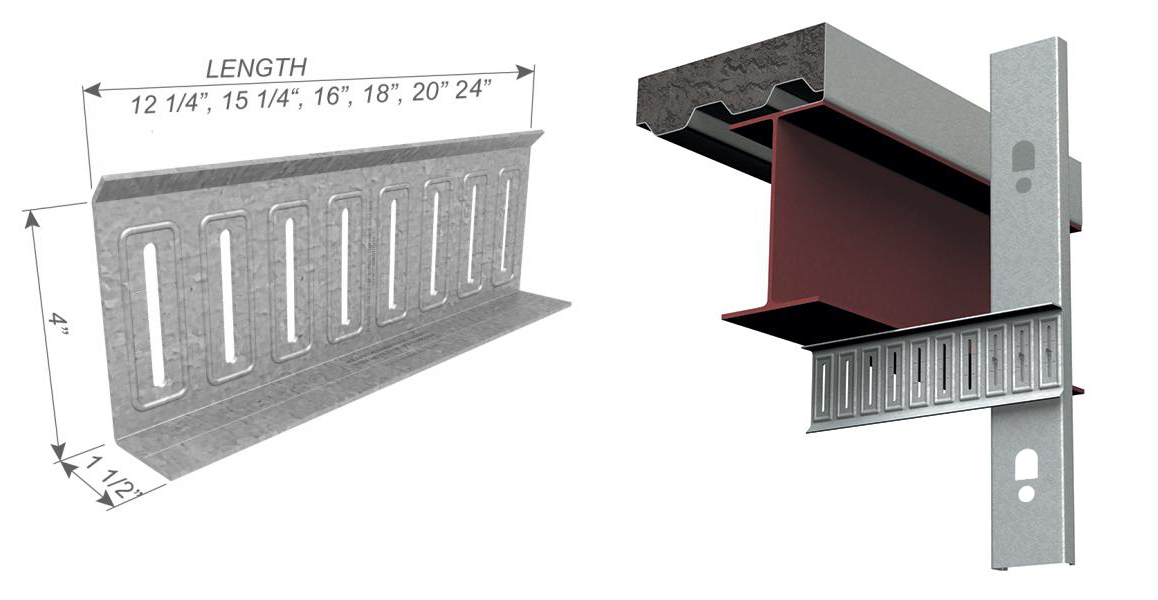

fast strut combined

USED FOR LARGE STANDOFF CONDITIONS

Fast Strut™ curtain-wall connector employs the Fast Clip™ technology for curtain-wall stud attachment and is commonly used when large stand-off conditions exist.

Fast Strut™  products are available in standard lengths of 12-1/4” and 15-1/4” and custom lengths of up to 24” long to allow framing attachment well beyond the perimeter of the structural steel or when the spandrel beams are set back from the edge of the structure. Struts are attached to the underside of structural members with screws, welds, or powder-actuated fasteners. FastClip Deflection Screws are provided with each strut to ensure friction-free sliding. Each strut is also embossed with fastening patterns to ensure accurate placement of fasteners.

Vertical movement up to 2-1/2” (1-1/4” up and 1-1/4” down).
Allows for standoff from the primary frame.
FastClip™ Deflection Screws (included) provide frictionless slip connection.
U.S. Patent No. 6,688,069

Alternative Products
Webslide Clip (WSC 350 & WSC 550)
Extended Fastclip™ (FCEC)
Horizontal Flange Attachment (HFA CLIP)

PRODUCT DATA & ORDERING INFORMATION

Product code   Gauge
 Mils  Design
thickness (in)
Size (in)   Pcs./Ctn
CLIP-FS12  14  68 0.0713
  4 x 1-1/2 x 12-1/4  10
 CLIP-FS15  14  68  0.0713  4 x 1-1/2 x 15-1/4  10
CLIP-FS18
 14  68 0.0713 4 x 1-1/2 x 18  10
 CLIP-FS20  14  68  0.0713  4 x 1-1/2 x 20
 10
 CLIP-FS24  14  68  0.0713  4 x 1-1/2 x 24
 10

Includes 80 FastClip deflection screws per box
Material Structural Grade 50 Type H (ST50H), 50ksi
Coating G90 (Z275) hot-dipped galvanized coating

*FastStrut™ (FS12, FS15, FS18, FS20, FS24) are distributed by Bailey Metal Products in Canada under permission granted by ClarkDietrich Building Systems. ClarkDietrich FastStrut™ is a trademark of ClarkDietrich.
