SWIFTCLIP™ 3" X 3" (LA-SERIES)THE STRENGTH WITHIN


SWIFTCLIP™ 3" X 3" (LA-SERIES)

SwiftClip la combined.jpg

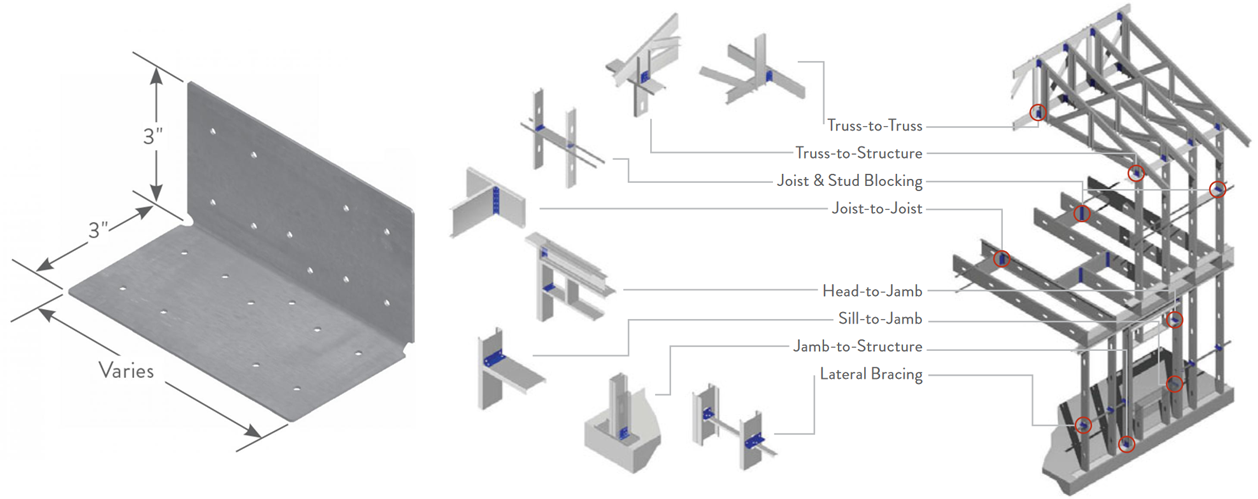

Pre-punched SwiftClips™ are used for multiple construction applications. 3" leg x 3" leg clips are commonly used for floor joist hangers and truss connections. Fixed clips should not be used in place of a deflection clip.

PRODUCT DATA & ORDERING INFORMATION

Product code   Gauge
 Mils Design Thickness (in)
Size (in)
Common application  Packaging pcs./Ctn
CLIP-LA543
16
54
0.0566
3 x 3 x 3-1/4  Joists/Trusses
100
CLIP-LA545  16
54
0.0566
3 x 3 x 5-1/2
 Joists/Trusses  100
CLIP-LA685
14
68 0.0713 Joists/Trusses
50
CLIP-LA975
12
97
0.1017
Joists/Trusses 50
CLIP-LA687
 14 68
0.0713 3 x 3 x 7-1/4 Joists/Trusses 50
 CLIP-LA977  12 97 0.1017  Joists/Trusses 50

Material Structural Grade 50 Type H (ST50H), 50ksi
Coating G90 (Z275) hot-dipped galvanized coating

INSTALLATION
  • SwiftClip Support Clips are attached to the cold-formed steel (CFS) framing members using #10 minimum self-drilling screws driven through the clip holes into the steel framing. Connections to the building frame can be made with powder-actuated fasteners, drill-in concrete anchors or welding.
  • It is the responsibility of the design engineer to detail the attachment of clips and verify their capacity meets the application.
  • Place the first two screws in each leg in the outermost screw holes. Place the next two screws (if needed) in center holes next to the CRC holes (diagonal). The next screws (if needed) are placed moving from the outermost holes toward the center, symmetrically.

*
SWIFTCLIP™ 3" X 3" (LA-SERIES) support clips are distributed by Bailey Metal Products in Canada under permission granted by ClarkDietrich Building Systems. SWIFTCLIP™ support clips is a trademark of ClarkDietrich.
